Material:
Specially processed low carbon steel

Craft: Extruded and draw from special
smelted steel,using advanced equipment and technology grants low hardness,good ductility and strong binding capacity,best choice for wire ropesleeve

Finish: Galvanized, nickel-plated,
or chrome-plated as per requirements

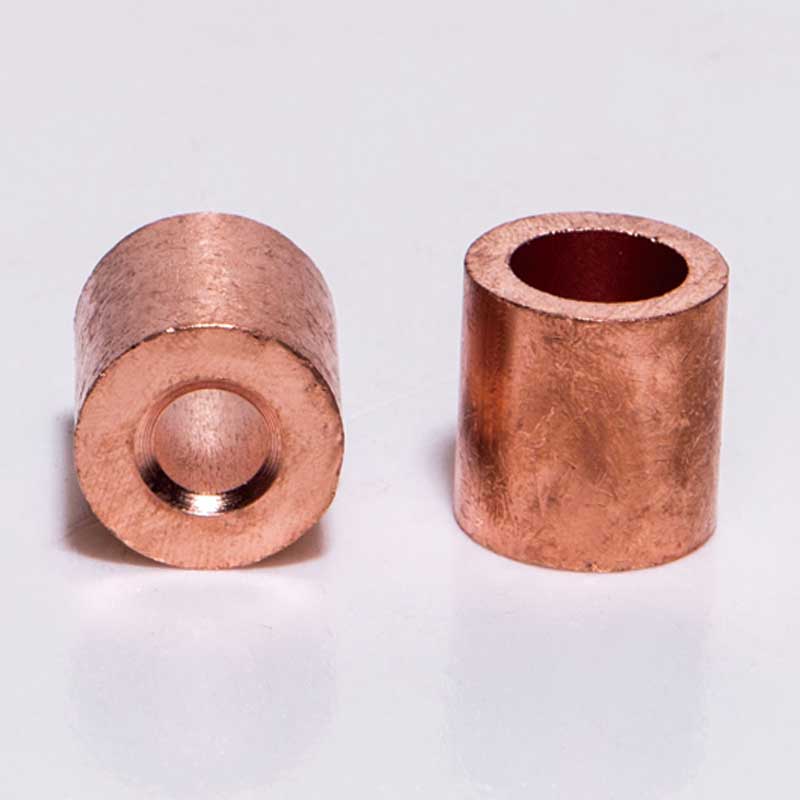

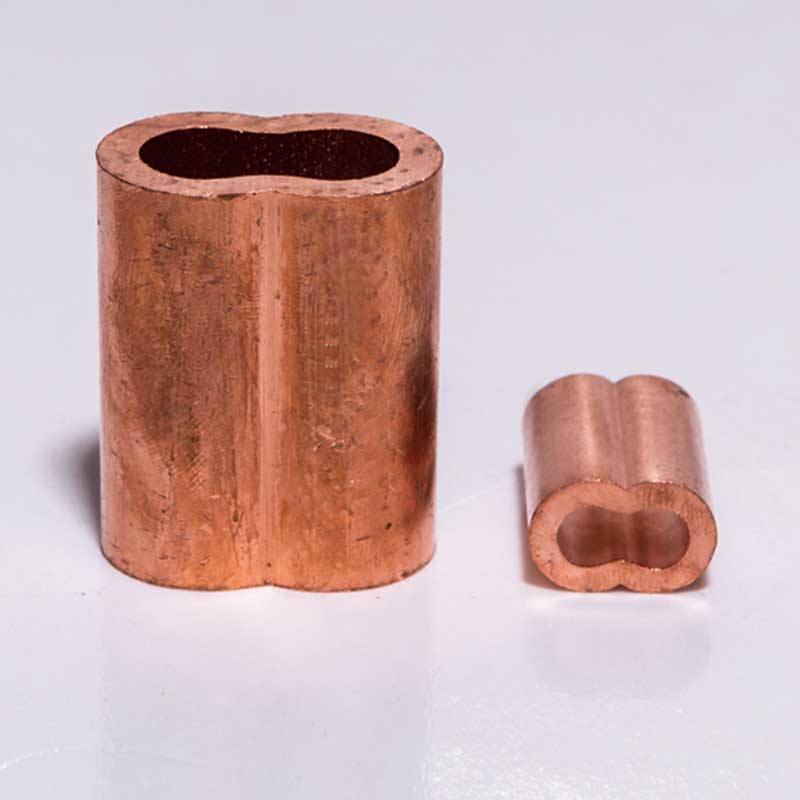

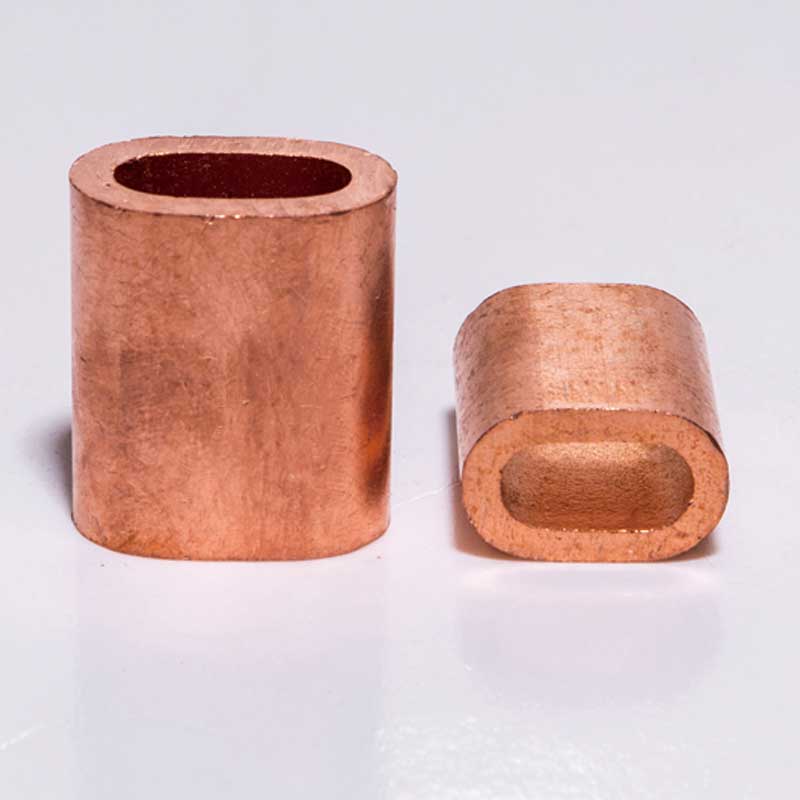

Craft: Made of 99% pure copper
allows excellent holding
strength & mechanical
properties

Finish: Galvanized, nickel-plated,
or chrome-plated as per
requirements

Type: With and without hole
Noted: The inspection hole helps to control the inserted lenght of wire rope before and after swaging
Must use conical type C swaging die for pressing

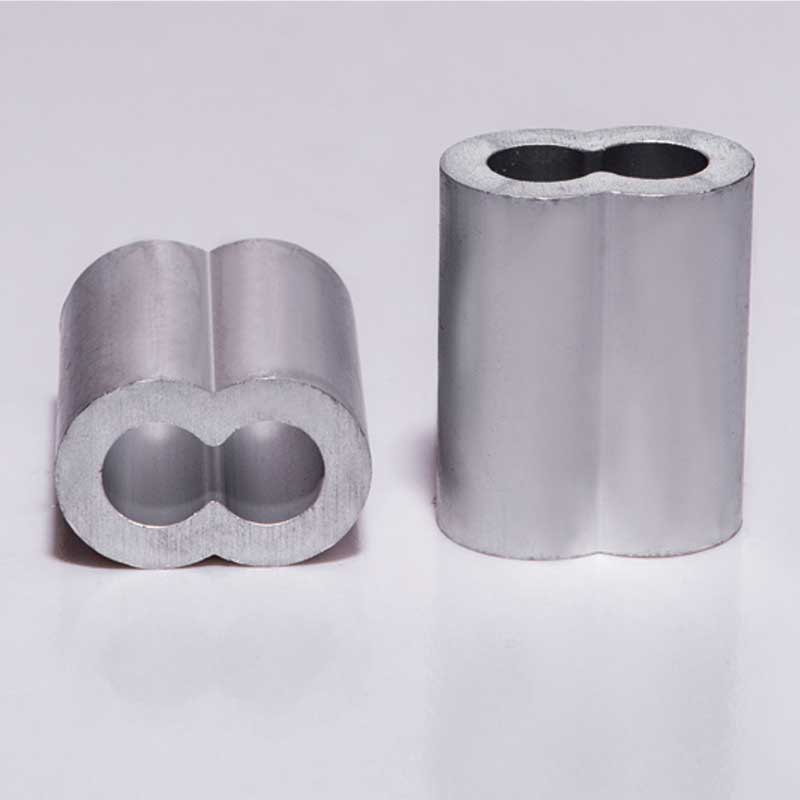

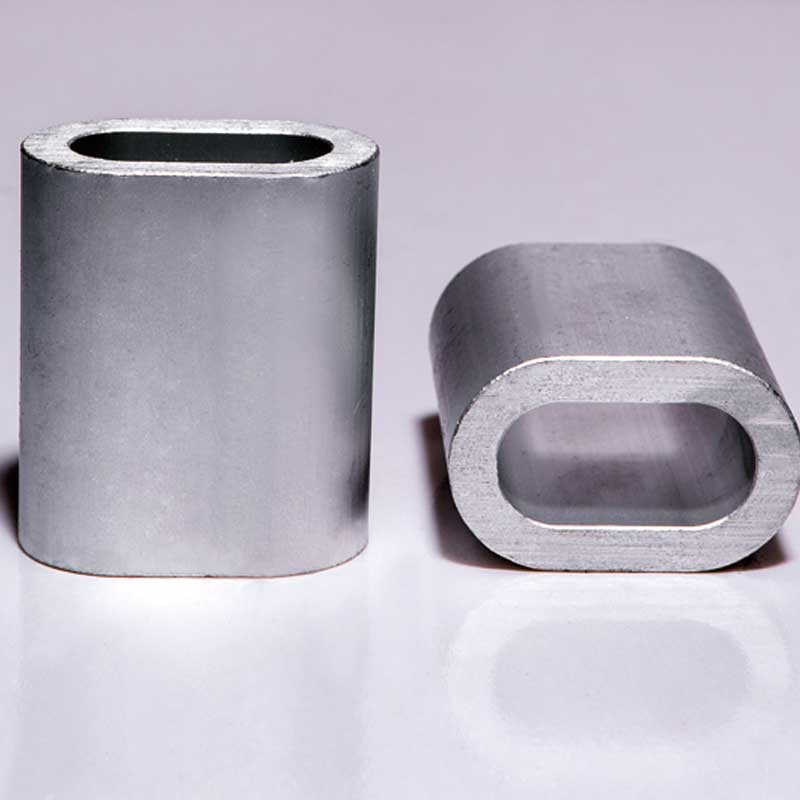

Craft：Extruded from high quality aluminium alloy, heat treated achieve excellent swaging quality
Others:By using the aluminium oval sleeve for sofe eye swage,the breaking strength can reach 95% of the wire rope MBL

Standard: EN13411-3(DIN 3093)standard
Others:Kindly consult us for larger size
-60mm to 102mm

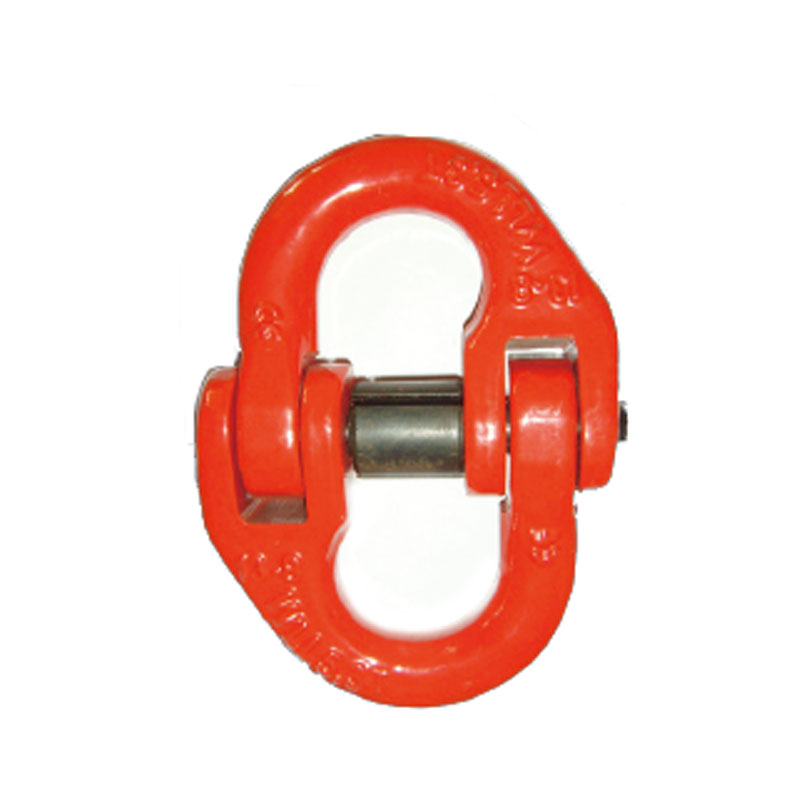

Material: Forged alloy steel, quenched and tempered
Safety Factor: 4:1
Others:Suitable for EN818-2 G80 chain
Proof load is 2.5 times the WLL
100% magnaflux
With safety latch

Material: Forged super alloy steel,quenched and tempered
Standard: ASME B30.26 standard
Others:
Permanent marking of WLL &
size on body
100% magnaflux

• Material: Carbon steel, forged, hot dipped galvanized,heat-treated body with quenched andtempered end-fitting
• Safety Factor: 5:1
• Standard: ASME B30.26 standard

Material: Forged super alloy steel,quenched and tempered,welded sub link
Standard: ASME B30.26 standard
Others:
Permanent marking ofWLL & size on body100% magnaflux

Material: Forged super alloy steel,
quenched and tempered
Standard: EN1677-4 standard
Others:
Permanent marking of WLL &size on body
Proof load is 2 times the WLL 100% magnaflux

• Material: Carbon steel, forged, hotdipped galvanized,heat-treated body with quenched and
• tempered end-fitting
• Safety Factor: 5:1
• Standard: ASME B30.26 standard

Material: Forged super alloy steel,quenched and tempered,welded sub link
Standard: EN1677-4 standard
Others:
Permanent marking of WLL & size on body
Proof load is 2 times the WLL
100% magnaflux

Material: Forged alloy steel, quenched and
tempered
Safety Factor: 4:1
Others:Suitable for EN818-2 G80 chain
Proof load is 2.5 times the WLL 100% magnaflux

Material: Forged alloy steel, quenched and tempered
Safety factor: 5:1

Material: Forged alloy steel,quenched and
tempered
Safety factor: 6:1

• Material:Carbon steel, forged, hot dipped galvanized,heat-treated body with quenched and tempered end-fitting
• Safety Factor: 5:1
• Standard: ASME B30.26 standard

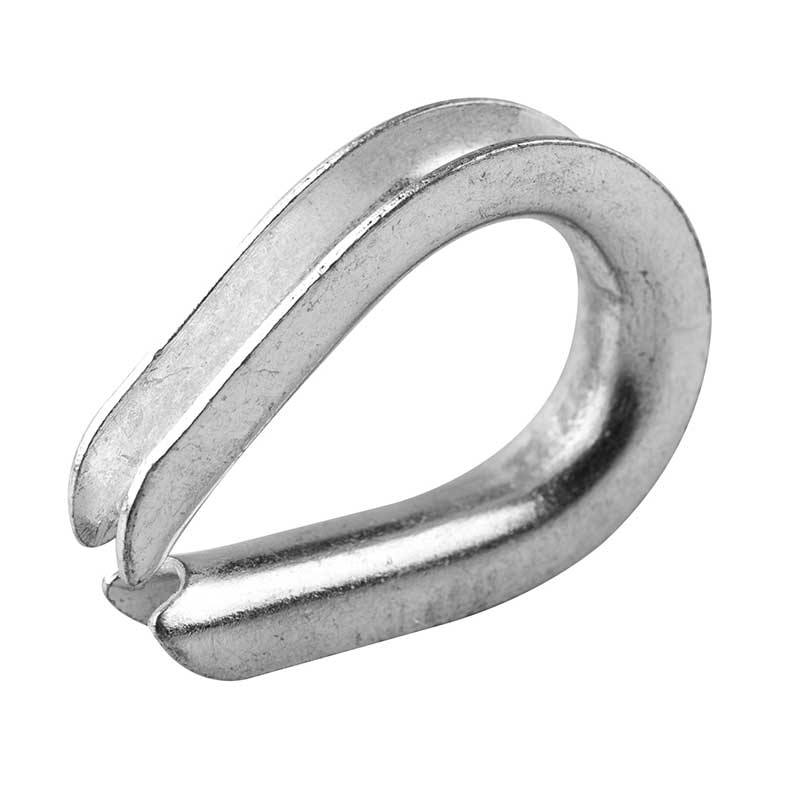

Finish:
Hot dipped galvanized or electro galvanized
Standard: EN13411-1:2002 standard
Others:Used for light-duty & mild
wear occasion

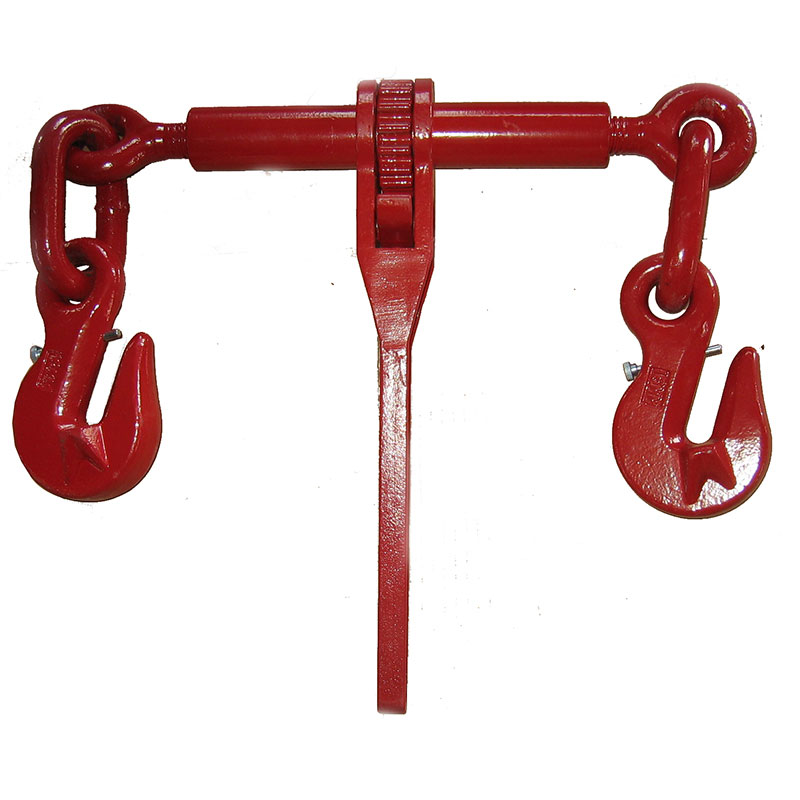

Process: Forged handle
Standard: EN12195-3 standard.
Others:With safety pin
Suitable for G80 chain
For binding not lifting

• Material:Carbon steel, forged, hotdipped galvanized,heat-treated body with quenched and
• tempered end-fitting
• Safety Factor:5:1
• Standard: ASME B30.26 standard

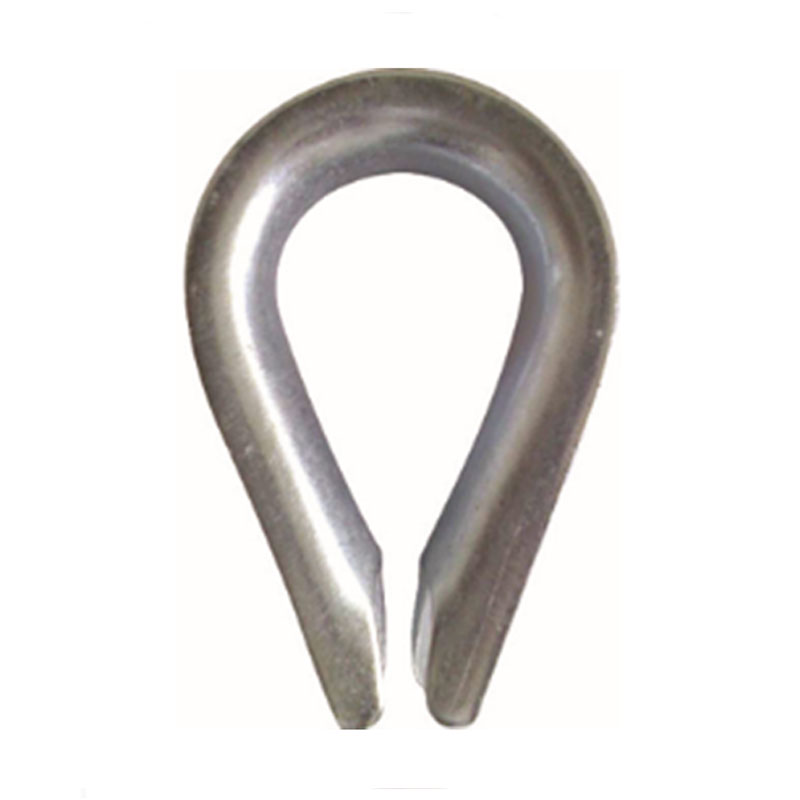

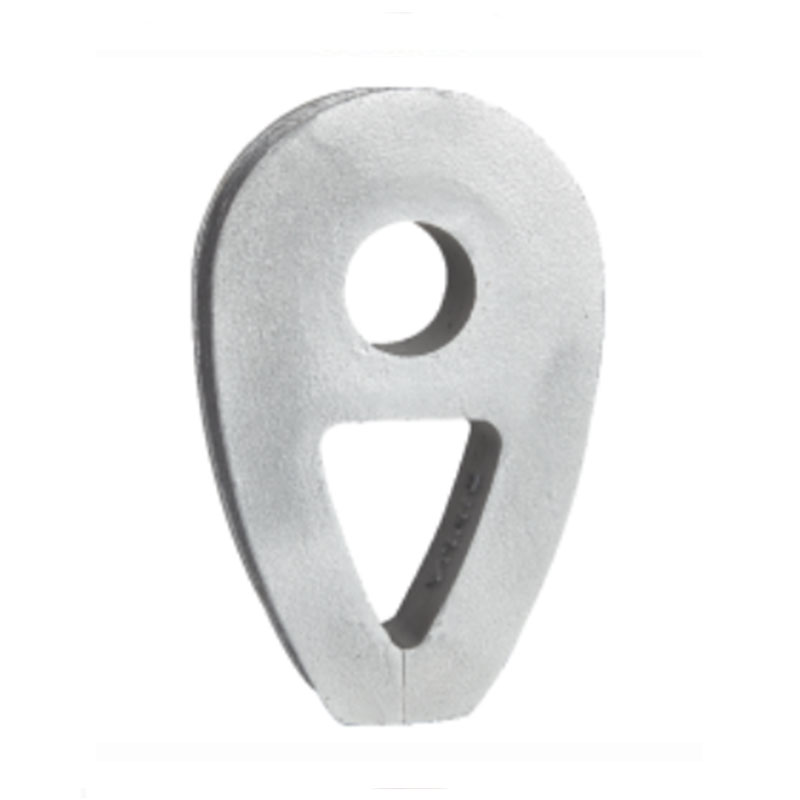

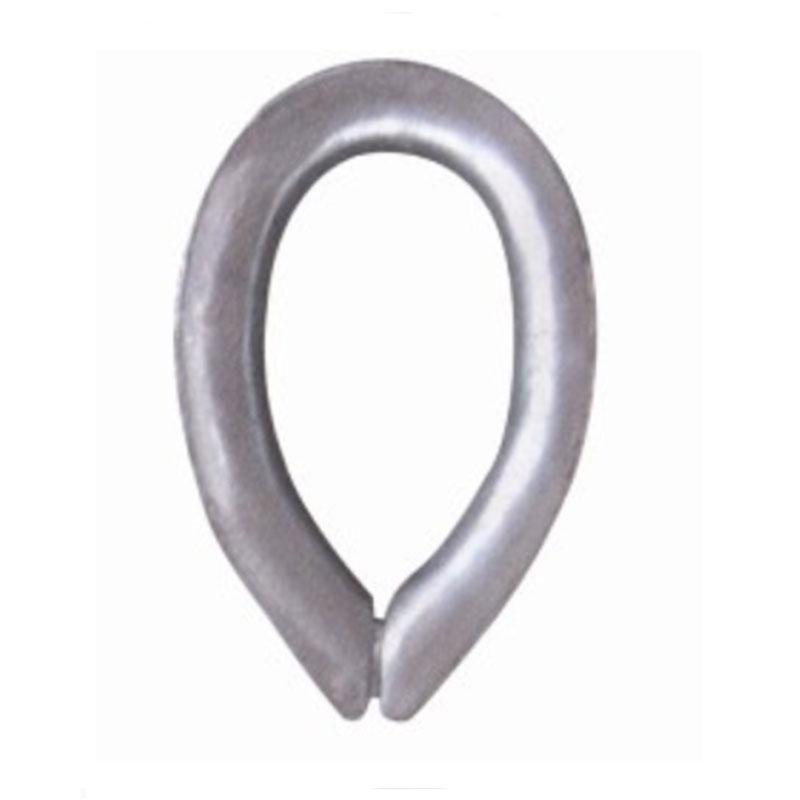

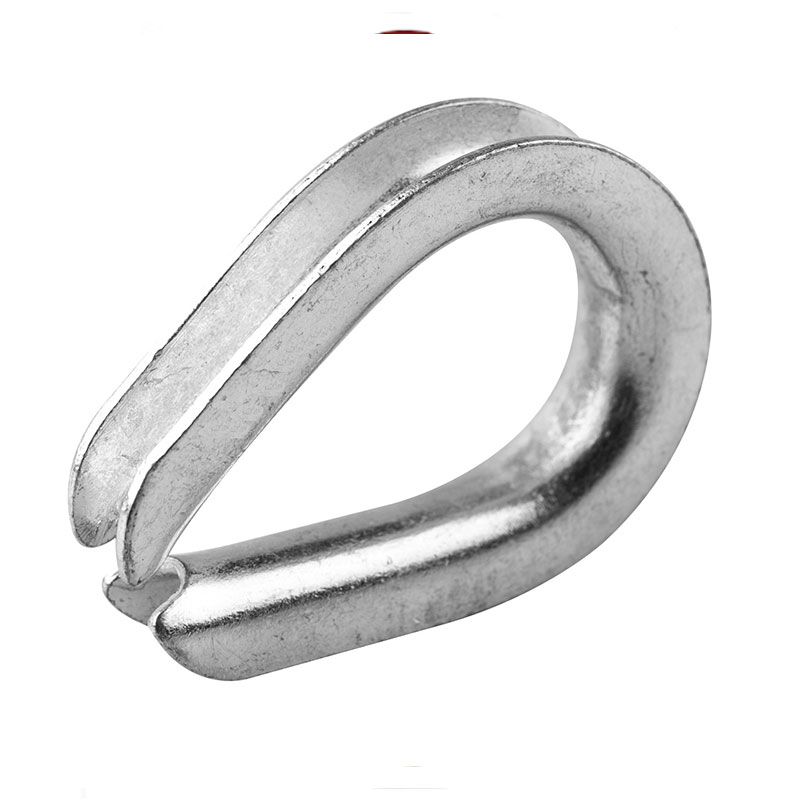

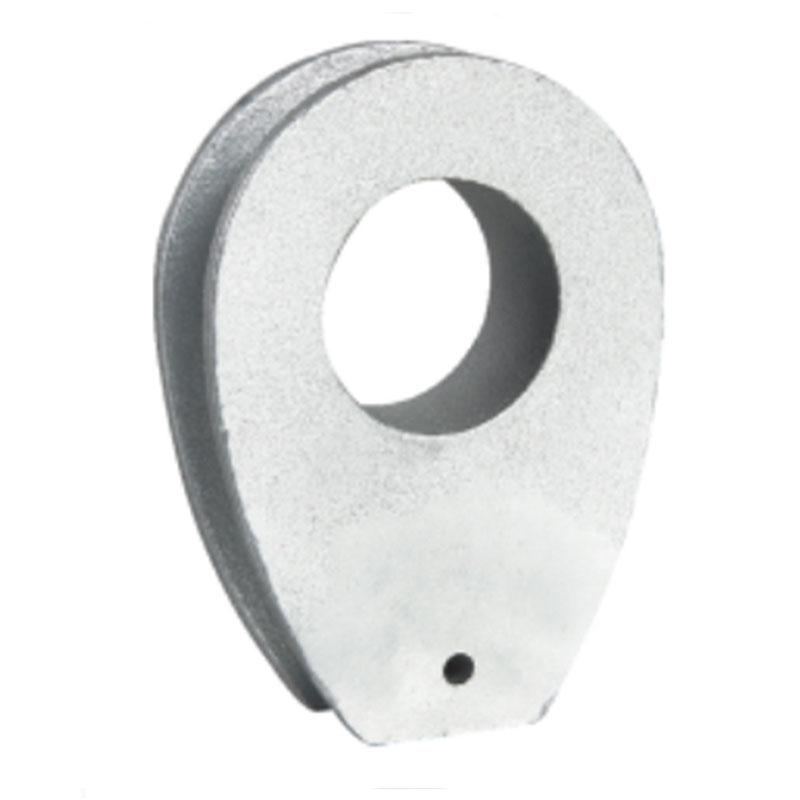

Finish:Hot dipped galvanized
Standard: EN13411-1:2002 standard
Others:
Better prevent the wear of wire rope and reduce the deformation of wire rope eye
Kindly consult us for larger size

Material: Forged alloy steel, quenchedand tempered
Safety Factor: 4:1
Others:
Suitable for EN818-2 G80 chain
Proof load is 2.5 times the WLL 100% magnaflux

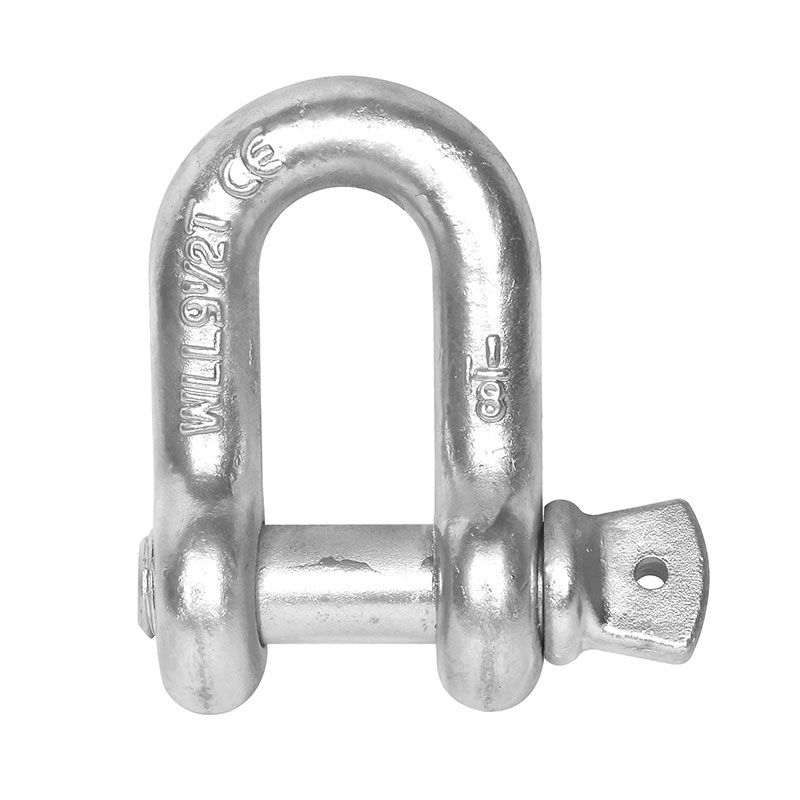

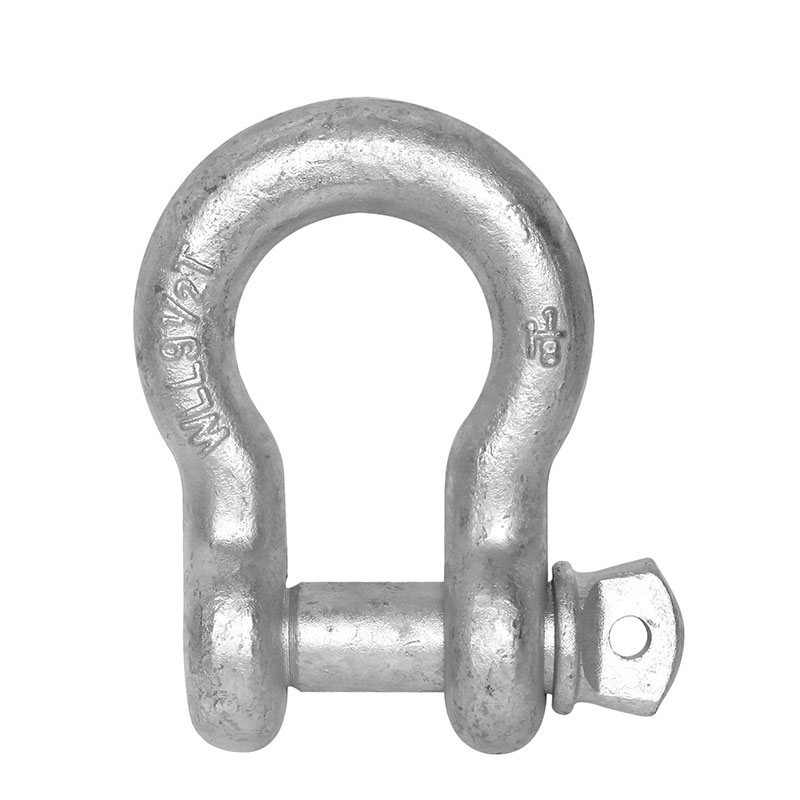

Material:Carbon steel body with alloy
steel pin, forged,quenched and tempered,hot dipped galvanized
Standard: ASME B30.26 standard.0.5t
upward to 25t comply with EN13889:2003 standard
Temperature Range: -40°C-204°C
Others:
Permanent marking of WLL & size on body
Meet low temperature impact requirement of 42 joules at -20°C
3.1 certificate & magnaflux will be provided upon request

Material:
Alloy steel, quenched and tempered
Safety Factor: 4:1
Finish:
Polishing,black,dipping, hot dipped galvanized,eletro-galvanized,dacromet,etc

Finish:
Hot dipped galvanized,electro galvanized or powder painting
Standard: Stamping

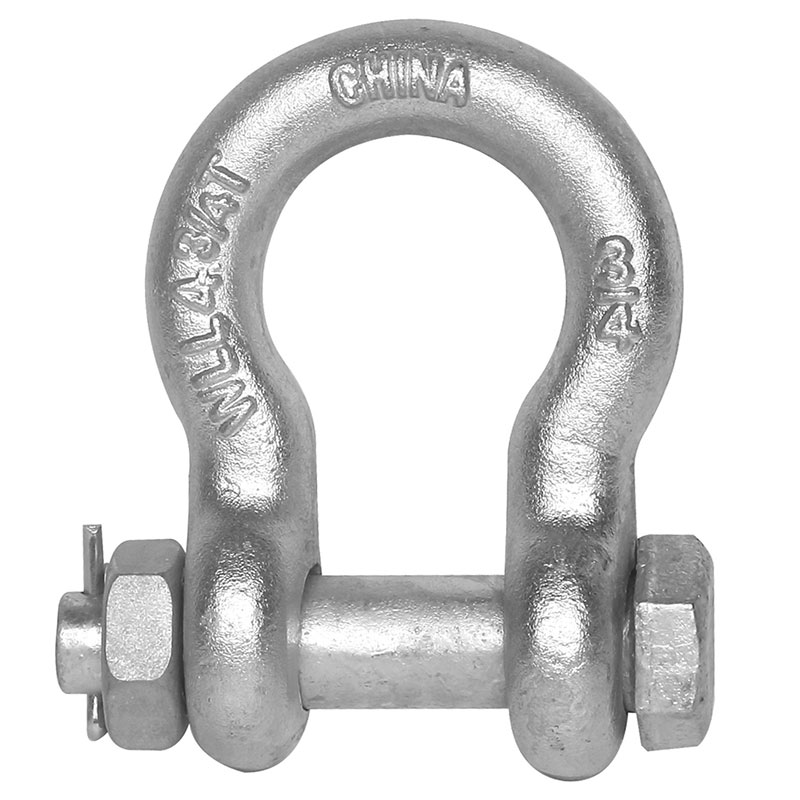

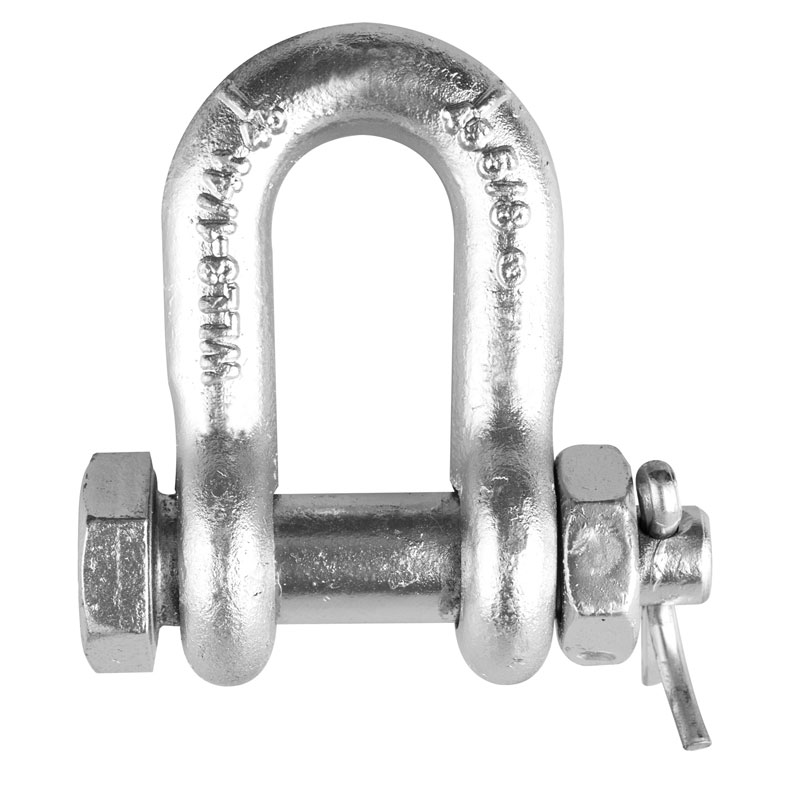

Material:Carbon steel body with alloy steel bolt, forged,quenched and tempered,hot dipped galvanized
Standard: ASME B30.26 standard.1/3t upward to 25t comply with EN13889:2003 standard
Temperature Range: -40°C-204°C
Others:
Permanent marking of WLL & size on body
Meet low temperature impact requirement of 42 joules at -20°C
3.1 certificate & magnaflux will be provided upon request

Finish: Hot dipped galvanized,electro galvanized or
powder painting
Craft: Stamping

Material: Alloy steel, forged, quenchedand tempered, hot dipped galvanized
Standard: ASME B30.26 standard
Temperature Range: -40°C-204°C
Others:Permanent marking of WLL &size on body
Meet low temperature impact requirementof 42 joules at -20°C
3.1 certificate & magnaflux will be provided upon request

Material:
Alloy steel, quenched and tempered
Safety Factor: 4:1
Finish:
Polishing,black,dipping, hot dipped galvanized,eletro-galvanized,dacromet,etc

Material: Carbon steel body with alloy steel bolt, forged,quenched and tempered,hot dipped galvanized
Standard: ASME B30.26 standard. 0.5t upward to 25t comply with EN13889:2003 standard
Temperature Range: -40°C-204°C
Others:
Permanent marking of WLL & size on body
Meet low temperature impact requirement of 42 joules at -20°C
3.1 certificate & magnaflux will be provided upon request

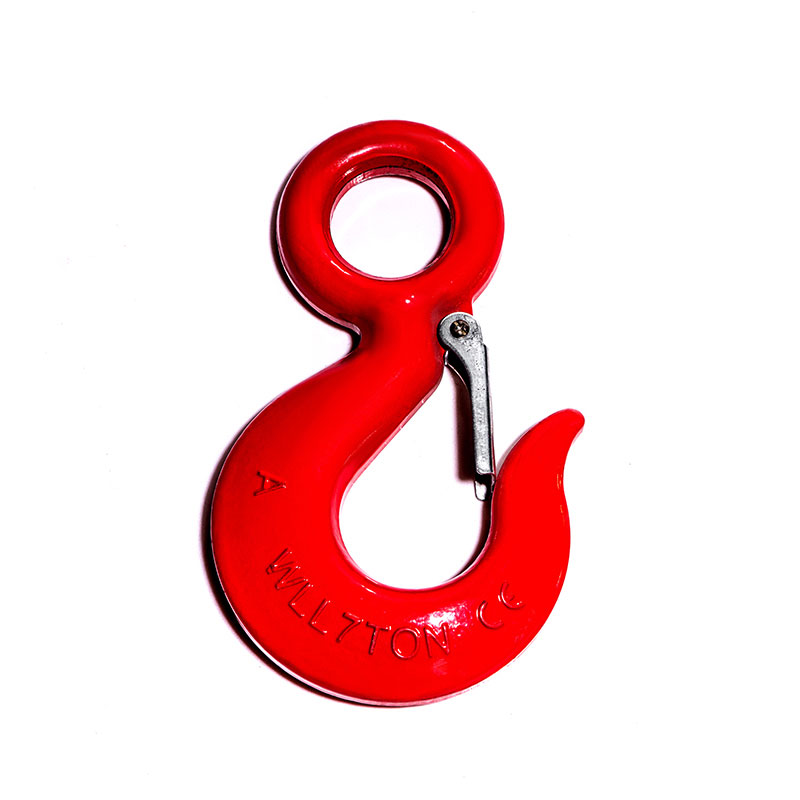

Material: Forged alloy steel, quenchedand tempered
Safety Factor: 4:1
Others:
Suitable for wire rope or En818-2 G80 chain
Proof load is 2.5 times the WLL 100% magnaflux
With safety latch

Material: Alloy steel, forged, quenched and tempered, hot dipped galvanized
Standard: ASME B30.26 standard
Temperature Range: -40°C-204°C
Others:Permanent marking of WLL &size on body
Meet low temperature impact requirement of 42 joules at-20°C
3.1 certificate & magnaflux will be provided upon request

• Material:Carbon steel, forged, hot dipped galvanized,heat-treated body with quenched and tempered end-fitting
• Safety Factor: 5:1
• Standard: ASME B30.26 standard

Material: Forged alloy steel, quenched and
tempered
Safety Factor: 4:1
Others:Suitable for wire rope or EN818-2 G80 chain
Proof load is 2.5 times the WLL
100% magnaflux

• Material: Forged alloy steel
• Standard: ASME B30.26 standard
• Finish:Galvanized,anti-corrosion & anti-rust

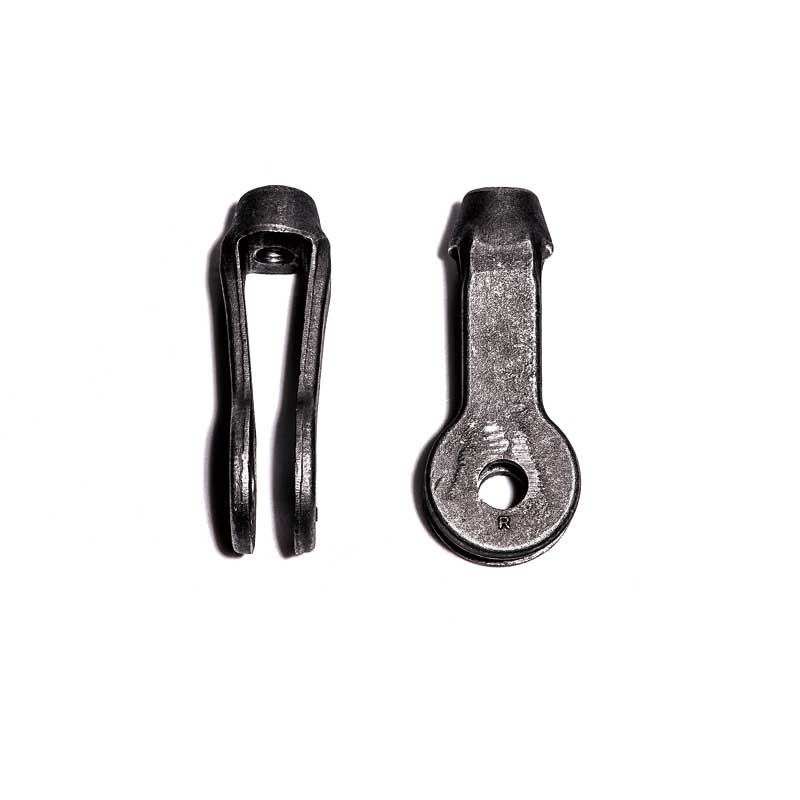

Material: Basket is cast steel and individually magnetic
particle inspected
Standard: Meet requirements of ASME B30.26 & EN 13411-6
Others:
Wedge socket terminations have an efficiency rating of 80% strength of wire rope
Pin diameter and jaw opening allows wedge and socket to be used in conjunction with closed swage and spelter sockets
The tail, which is secured by the base of the clip and
the wedge, is left undeformed
Available with bolt, nut, and cotter pin
